2008: Facade Study

Some models and drawings I did for a hotel project at work a couple of years ago...  These photos are of a model for one wing of the facade (each opening is one hotel room), obviously made with a laser cutter. In the third image you can see the assembly method.

1/16" Model for One Wing of Facade

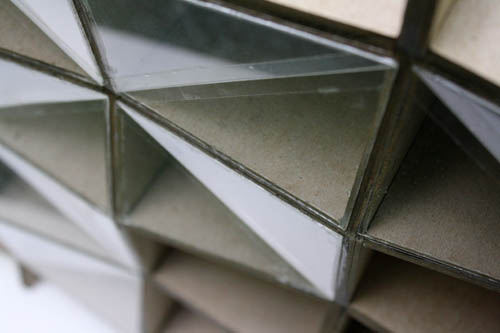

Detail of 1/16" Model
Detail of 1/16" Model
Partial View of Laser Cut Files
This was then scaled up to a 1/4" Detail Model.  I laser-cut each fin four times, then laminated them together.  The assembled piece was then interlocked with the rest of the facade to form the model.  While the project has not been built, the detail model is enjoying a useful second life as storage for my pens and pencils.

1/4" Detail Model
1/4" Detail Model
